Body
Body in die-cast aluminum
Source
The LED light source (Sanan or Epistar) is available standard with 2700-3200 colour temperature, and with 4000-4500K or 6000-6500 K upon request. R044 has an high CRI coefficient of ≥ 80 and is 120°l beam angle. PMMA LGP. available with 120° optics.
Voltage
Driver can be isolated driver, non-isolated and EMC versions in available.
Input Voltage :AC100-265V 50/60Hz.
Operating temperature -30 ° + 45 °.
Applications
House; Commercial areas; hotel; Superstores
Detail informations

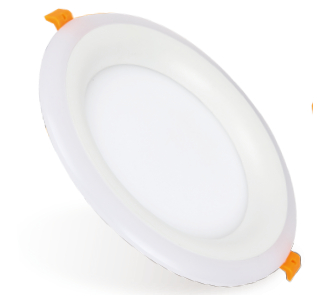

Name：slim Panel light
3528 SMD
Material:Alum.+PC

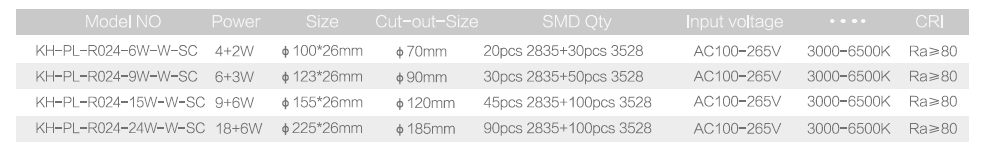

Size:see below chart
Input voltage:AC100-265V
CCT: 2700-6500K+GREEN/RED/YELLOW
Power:6W/9W/15W/24W
Driver:non-isolated driver/isolated driver/EMC driver
Approval: SAA/ CE /LVD/EMC
